Hot Tube

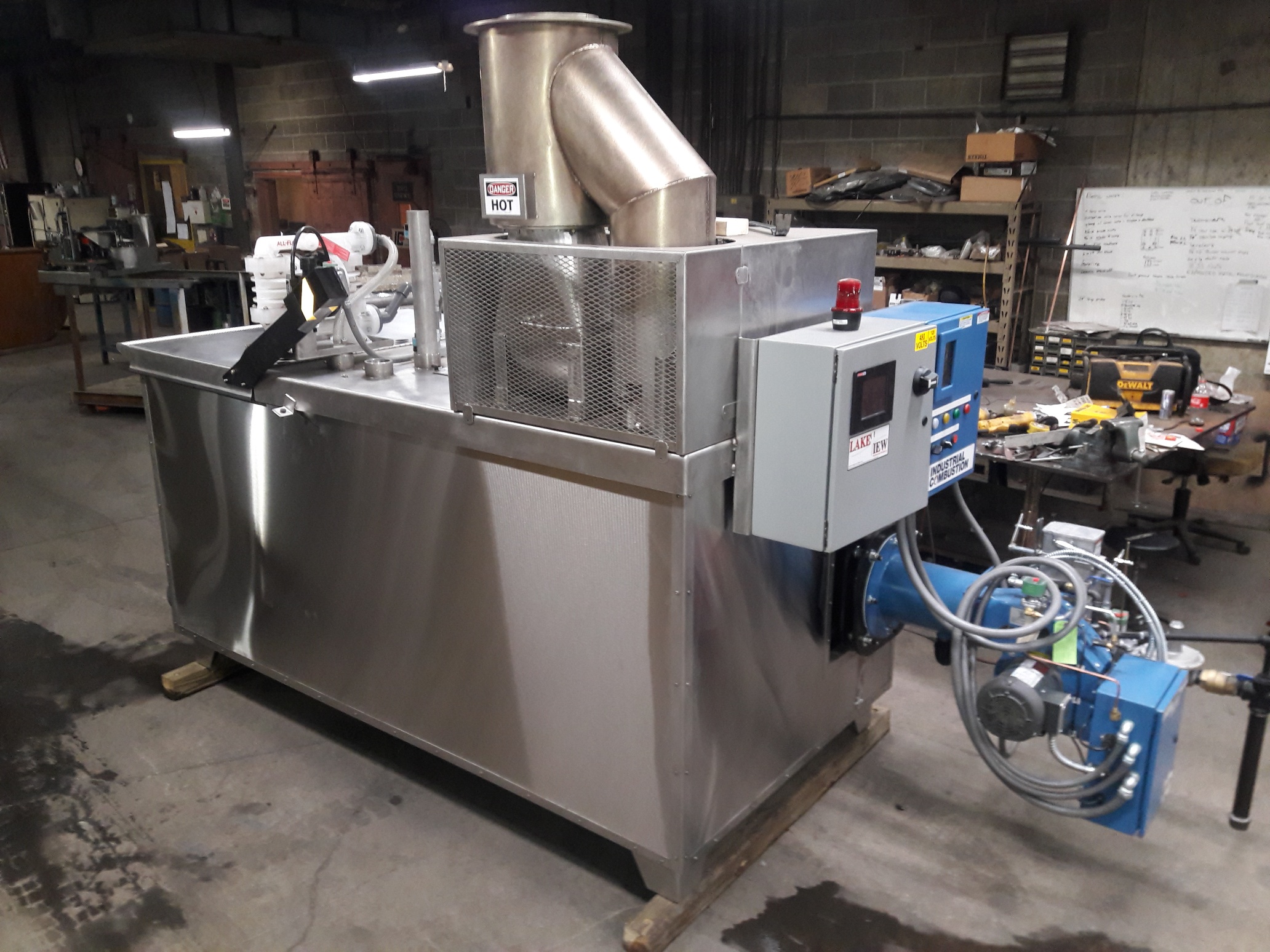

The Hot Tube models are gas fired evaporators. These evaporators are designed to operate on natural gas or propane. The E-600 and larger evaporators can be equipped to operate on #2 fuel oil or diesel.

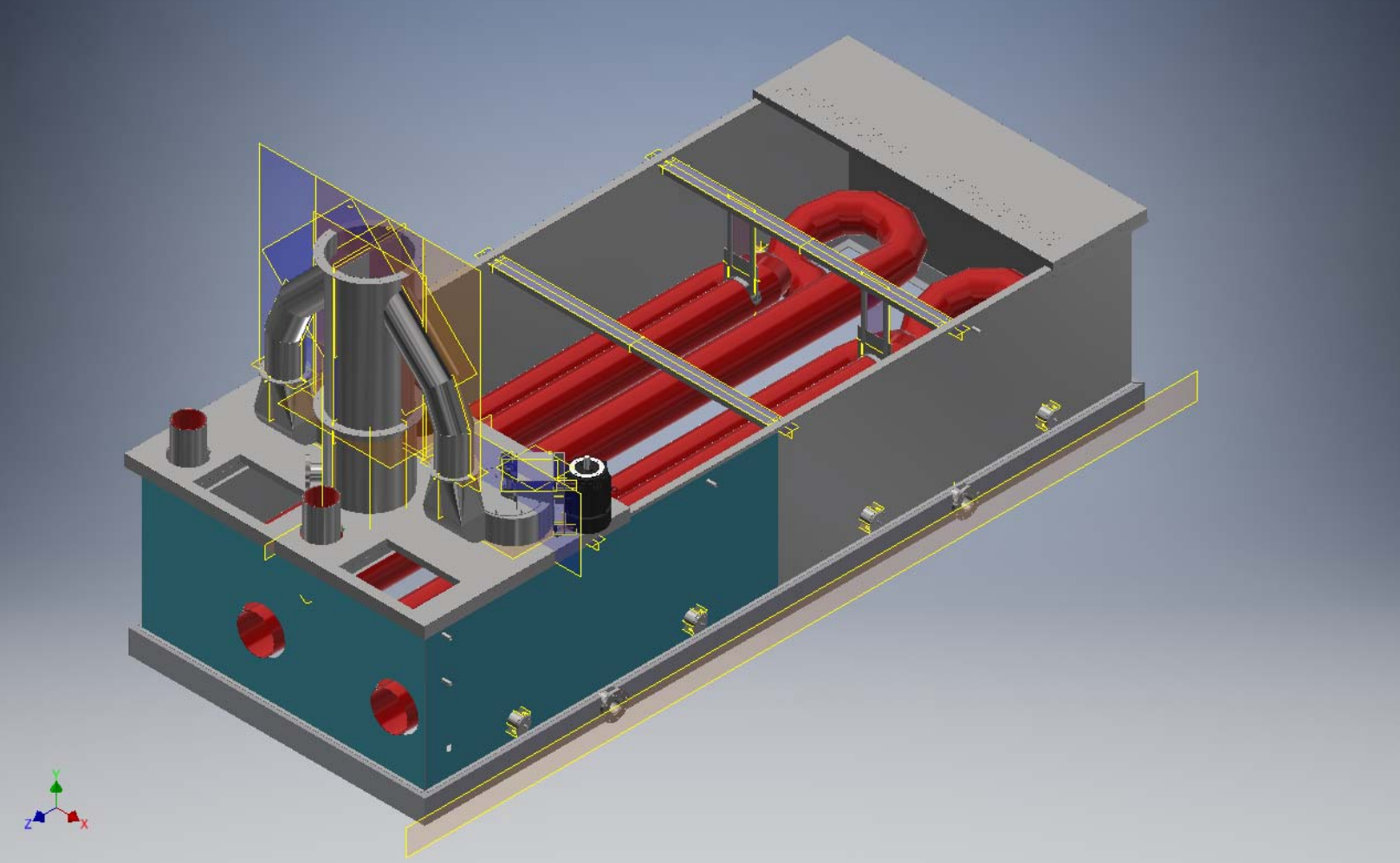

The heat exchanger tube is elevated above the bottom of the tank which allows for solids and sludge to fall past the heat exchanger to the bottom of the evaporator tank. The reducing diameter over the tube length maintains scrubbing velocity for high efficiency. All exterior surfaces of the heat exchanger tube are polished for ease of cleaning.
Hot Tube, Hot Shot, and Hot Bottom are registered trademarks of Lakeview Engineered Products, Inc. Lakeview Engineered Products reserves the right to make product specification changes and/or updates to their wastewater evaporators without prior notice.
| Hot Tube |
evaporation rate |
tank dimensions |
tank capacity |
weight | ||||
| model | gph | btu/hr | L | W | H | max | nom | lbs |
| E-100 | 17 | 225,000 | 71" | 50" | 87" | 150 | 120 | 1100 |
| E-200 | 30 | 390,000 | 88" | 50" | 87" | 230 | 180 | 1400 |
| E-300 | 40 | 520,000 | 102" | 50" | 87" | 350 | 270 | 1800 |
| E-300 XLT | 60 | 780,000 | 102" | 51" | 93" | 350 | 230 | 1900 |
| E-600 | 60 | 840,000 | 149" | 65" | 93" | 750 | 550 | 1850 |
| E-600 XLT | 90 | 1,120,000 | 149" | 65" | 93" | 750 | 490 | 2850 |
| E-750 | 80 | 1,120,000 | 190" | 64" | 93" | 1150 | 900 | 2400 |
| E-750 XLT | 120 | 1,400,000 | 190" | 64" | 93" | 1150 | 820 | 3140 |
| E-900 XLT | 160 | 1,920,000 | 244" | 65" | 93" | 1590 | 1000 | 4100 |
| E-1200 XLT | 200 | 2,750,000 | 285" | 64" | 93" | 1885 | 1200 | 4250 |
| E-1500 XLT | 300 | 3,600,000 | 246" | 109" | 98" | 2200 | 1450 | 8200 |
| E-1800 XLT | 400 | 4,800,000 | 287" | 128" | 95" | 2800 | 1800 | 9200 |
