E-300 Hot Shot
Tank Capacity Maximum -- 400
Tank Capacity nominal -- 300
Weight -- 1,800
24 Gallons per hour

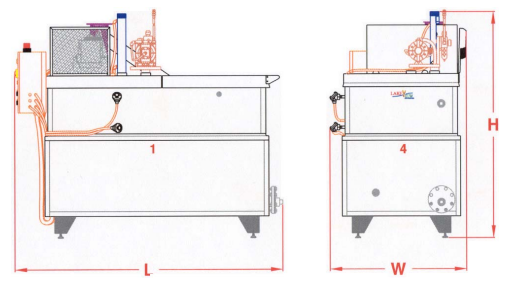

Length -- 90"
Width -- 46"
Height -- 74"
Standard Features
- Construction -- 316L stainless steel for all wetted parts
- Side mounted heating elements -- mounted externally
- Insulation -- 2” foil backed, 850°F, .30 conductivity, .043 SI units
- Exhaust blower housing -- heavy gauge, tig welded stainless steel
- Impeller -- self-cleaning backward inclined radial blade design
- Stack connection -- 6” I.D. flanged
- Fluid transfer pump -- air operated diaphram pump, 1/2” FPT
- Blower motor -- 3/4 hp, 3ph, 1725 rpm
- Control panel -- NEMA 4, industrial duty
- Fluid level control -- float actuated ball valve
- Fluid level sensors -- float actuated microswitches, high/low level
- Coalescing filter -- framed galvanized steel mesh at blower inlet
- Clean out -- 4” flange with eccentric reducer at 2” FPT
- Weir -- built in for easy skimming of floating oils
- Belt driven blower -- eliminates transference of vibration and heat
- Pillow block bearings -- heavy duty, greasable for long life
Optional Features
- Special Tank Construction
- Exhaust Stacks
- Remote Fluid Level Sensors
- Overspray/Foam Control
- Automation Package
- Skimmer/Sludge Pump
Safety Features
- Industrial safety disconnect at the unit
- Air-cooled, counterweighted access lid
- Safety circuitry and manual reset
- Safety cage around hot moving parts
- Fluid temperature monitor
- Redundant safety and level controls
